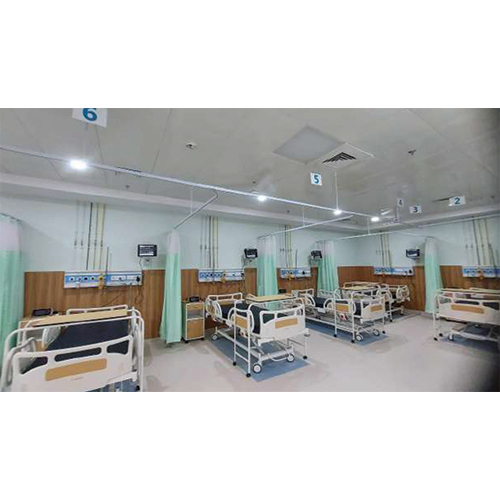

Hospital Bed Supply Panel

Conforms to

IS / ISO 11197 : 2019, IS / ISO IEC 60601-1:2015 + A1 : 2020

IS / ISO 7396-1 : 2016 + A1 : 2017, IS / ISO 9170-1 : 2017

Body

6063 T6 - Extruded Aluminium Alloy Profile (ISO AlMg0.5Si). T = Not less than 2mm

Finish

Epoxy coated to RAL 7035

End Cover

ABS Symmetrical in design for aesthetics

Overall dimensions (in mm) (Lx W x H)

RT2015

RT2016

RT2017

RT2018

930 x 175 x 85

1230 x 175 x 85

1520 x 175 x 85

1520 x 175 x 85

Type

Horizontal /Vertical- Surface mountable

Utility Connections

Concealed OR Copper stub pipe 125mm with flared top (Riser) for connecting gas services & Terminal for Power & communication wires

Pre-piped Medical Gases

RT2015- 4 BS Outlets as standard. Option of DIN, PB, OHMEDA & DISS - on request. RT2016 - 4 BS Outlets as standard. Option of DIN, PB, OHMEDA & DISS - on request. RT2017 - 5 BS Outlets as standard. Option of DIN, PB, OHMEDA & DISS - on request. RT2018 - 5 BS Outlets as standard. Option of DIN, PB, OHMEDA & DISS - on request.

Communication

Optional: RJ11 Telephone Socket, RJ45 Data Socket

Luminaries (Optional)

Embedded 300mm 6W LED reading light with diffuser at the center of the unit

Pre-wired Extra Low Volt

1 or 2 USB Ports (Optional)

Pre-wired 220V 50 Hz AC power socket & base plate

RT2015 - Shutter type Multi-standard 4 sockets compatible to 5-6-10-13A plugs

RT2016- Shutter type Multi-standard 6 sockets compatible to 5-6-10-13A plugsRT2017 - Shutter type Multi-standard 6 sockets compatible to 5-6-10-13A plugs RT2018 - Shutter type Multi-standard 8 sockets compatible to 5-6-10-13A plugs

Nurse Call (Optional)

Cut out of any size up to maximum 90mm length x 80mm wide on request

Earthing

Protective earth

Optional SEEB

Plug and Socket for Supplementary Equipotential Earth Bonding

Protection

Class II & IP54
