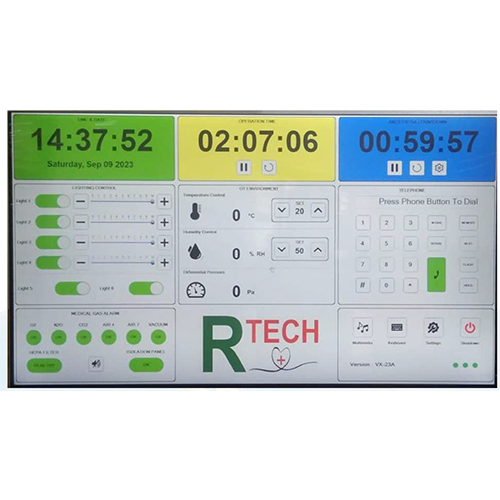

Operating Room Touch Screen Control Panel
Product Details:
- Material Mild Steel
- Portable Yes
- Condition New
- Size Standard
- Frequency 50 Hertz (HZ)
- Application Industrial
- Product Type Operating Room Touch Screen Control Panel
- Click to View more
X
Operating Room Touch Screen Control Panel Price And Quantity
- 1 Unit
Operating Room Touch Screen Control Panel Product Specifications
- 220 Volt (v)
- Industrial
- Operating Room Touch Screen Control Panel
- 1 Year
- 50 Hertz (HZ)
- New
- Electric
- Mild Steel
- Yes
- Standard
Product Description
Features
- DATE TIME - REAL TIME
- OPERATING TIME - ELAPSED TIME
- ANAESTHESIA TIME- COUNT DOWN TIME
- PERIPHERAL LIGHT CONTROL WITH DIMMER
- SURGEON LIGHT ON/OFF
- H.V.A.C ON/OFF
- TEMPERATURE DISPLAY WITH SET POINT
- HUMIDITY DISPLAY WITH SET POINT
- MEDICAL GAS ALARM SYSTEM
- HEPA FILTER STATUS
- HANDS FREE PHONE
- DIFFERENTIAL PRESSURE
- MUSIC PLAYER
- AUDIO ALARM
- USB STICK PORT , PLUG AN PLAY
- HOSPITAL LOGO ON SCREEN
POWER SUPPLY
- Supply Voltage :AC 100-240V, 50/60 Hz
- Power Consumption: 100 watts
DIMENSIONS
- Wall insert box cut out 615mm X 425mm X 130mm (Powder Quoted)
- Front Frame Panel 665mm X 475mm (SS 304 Grade)
- Panel Weight 15kg
- Packed Box Size 680mm X 500mm X 195mm
- Packed Box Weight 17kg
TOUCH DISPLAY LED
- Screen Size 22inch and 32 inch
- Resolution 1920 x 1080 Pixel HD
- Brightnees 450 cd/m2 min.
- Contrast 1000:1
- Viewing angle Horizontal/Vertical:178deg
- Number of colors 16.2 Million
- Response Time 25ms
SOFTWARE SPECIFICATION
- Booting Time 30-35 Seconds
- Operation System Windows
- Software Version VX 3.0
EMBEDDED PC DURATHON TECHNOLOGY
- CPU Intel Celeron 2.4 Ghz
- RAM 2 GB
- Storage 60 GB SSD
- Interfaces 4XUSB, 2xSerial , 1xLanGraphic VGA, HDMI
