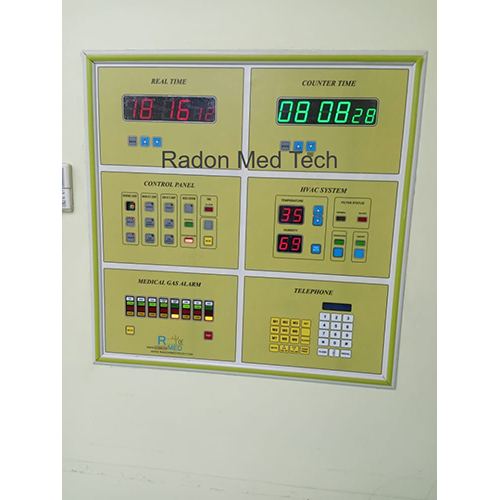

Surgeon Control Panel - Touch Screen
135000 INR/Unit
Product Details:
- Material Steel
- Condition New
- Use Type Hospital
- Display Touch Screen
- Power Source Electric
- Click to View more
X
Surgeon Control Panel - Touch Screen Price And Quantity
- 2 Set
- 135000 INR/Unit
Surgeon Control Panel - Touch Screen Product Specifications
- Steel
- Touch Screen
- Hospital
- Electric
- New
Surgeon Control Panel - Touch Screen Trade Information
- Cash in Advance (CID)
- 20 Set Per Month
- 15 Days
- All India
Product Description
ADVANTAGES
- Future proof - additional alarms, interfaces and controls can be added by simply modifying the software within the panel e.g. there is no need to cut a hole in the panel facia to add a new button or indicator.
- The screens smooth surface makes it easy to clean and it is designed to withstand the aggressive cleaning agents commonly used in operating theatres.
- Additionally, the touch screen's innovative ergonomics are particularly well suited to medical staff need a single display.
FEATURES
- Date Time - Real time clock
- Operation timing - Elapsed time
- Anesthesia timer Count Down time
- Peripheral Light control with dimmer
- OT Light On/Off
- HVAC On/Off .
- Temperature with set point
- Humidity with set point
- Medical Gas Alarm for 5 Gases and 1 Vacuum
- HEPA filter Status Indicator
- Hands Free Telephone
- Differential Pressure
- Music Player
- Audio Alarm
- USB Stick Port, Plug and Play
- Company Logo at Power On
- Company Logo Embossing on front panel
Specifications
POWER SUPPLY
|
Supply voltage |
AC 100-240V,50/60 Hz |
|
Power consumption |
100 watts |
Touch Display
|
Screen Size |
22inches |
|
Resolution |
1920x1080 Pixel HD |
|
Brightness |
450 cd/m2 min. |
|
Contrast |
1000:1 |
|
Viewing angle |
Horizontal/Verticol:178deg |
|
Number of colors |
16.2 Million |
|
Response time |
25 Ms |
Software specification
|
Booting Time |
30 - 35 Seconds |
|
Operating System |
Windows |
|
Software Version |
VX 3.0 |
DIMENSIONS
|
Wall insert box cut out |
615 x 425 x 130 mm (MS Powder Coated) |
|
Front Frame Panel |
665 x 475 mm (SS 304 Grade) |
|
Panel Weight |
15 Kg |
|
Packed Box Size |
680 x 500 x 195 mm |
|
Packed Box Weight |
17 kg |
EMBEDDED PC DURATHON TECHNOLOGY
|
CPU |
Intel Celeron 2.4 Ghz |
|
RAM |
2 GB |
|
Storage |
60 GB SSD |
|
Interfaces |
4XUSB, 2xSerial, 1xLan |
|
Graphic |
VGA, HDMI |
|
Power Supply |
12V Dc 5 Amps |
|
Interface |
Usb 2.0 , Serial RS232 |
Analog Input (4 Channel)
|
Max. input voltage |
12 V DC Signal |
|
Voltage 0 |
10 V |
|
Internal resistance |
100 kh |
|
Resolution |
12 bit |
|
Response time |
500 ms |
Analog Input (6 Channel)
|
Max. input voltage |
10 V |
|
Output voltage |
1-10 V |
|
Load |
500ma |
|
Resolution |
12 bit |
|
Response |
500 ms |
Digital Inputs (16 Channel)
|
Signal voltage |
DC 12V |
|
Input current |
2.8 mA |
|
Electrical isolation |
500 V system to supply |
Digital Inputs (8 Channel)
|
Load |
Ohmic. Inductive, Lamp load |
|
Output current |
Max 5/10 A |
|
Short circuit proof |
5 Amps Fuse |
|
Electrical isolation |
500 V system to supply |
